Vector Representation and Geometric Relationships

This page focuses on vector representation and geometric relationships in three-dimensional space. It introduces key concepts for understanding spatial relationships between points, lines, and planes.

Vocabulary:

• Stützvektor (support vector): A vector that defines a point on a line or plane
• Richtungsvektor (direction vector): A vector that indicates the direction of a line or plane

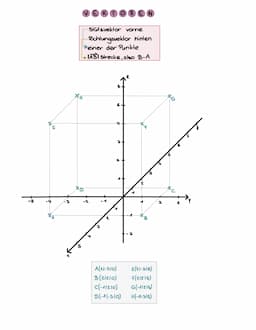

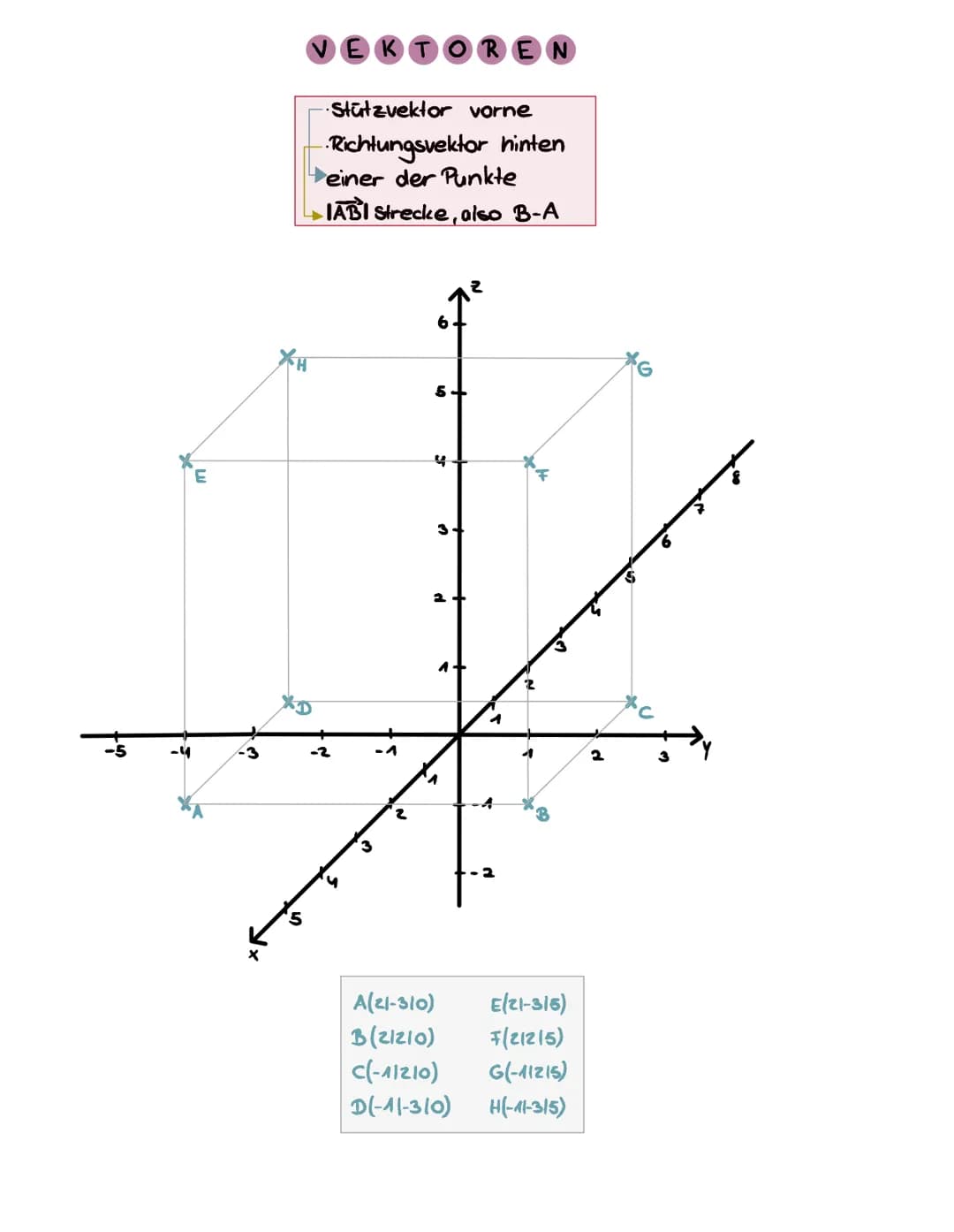

The page includes a diagram showing various points in 3D space, labeled from A to H, which helps visualize the spatial relationships discussed.

Highlight: Understanding the representation of vectors and points in 3D space is crucial for solving problems involving lines and planes.

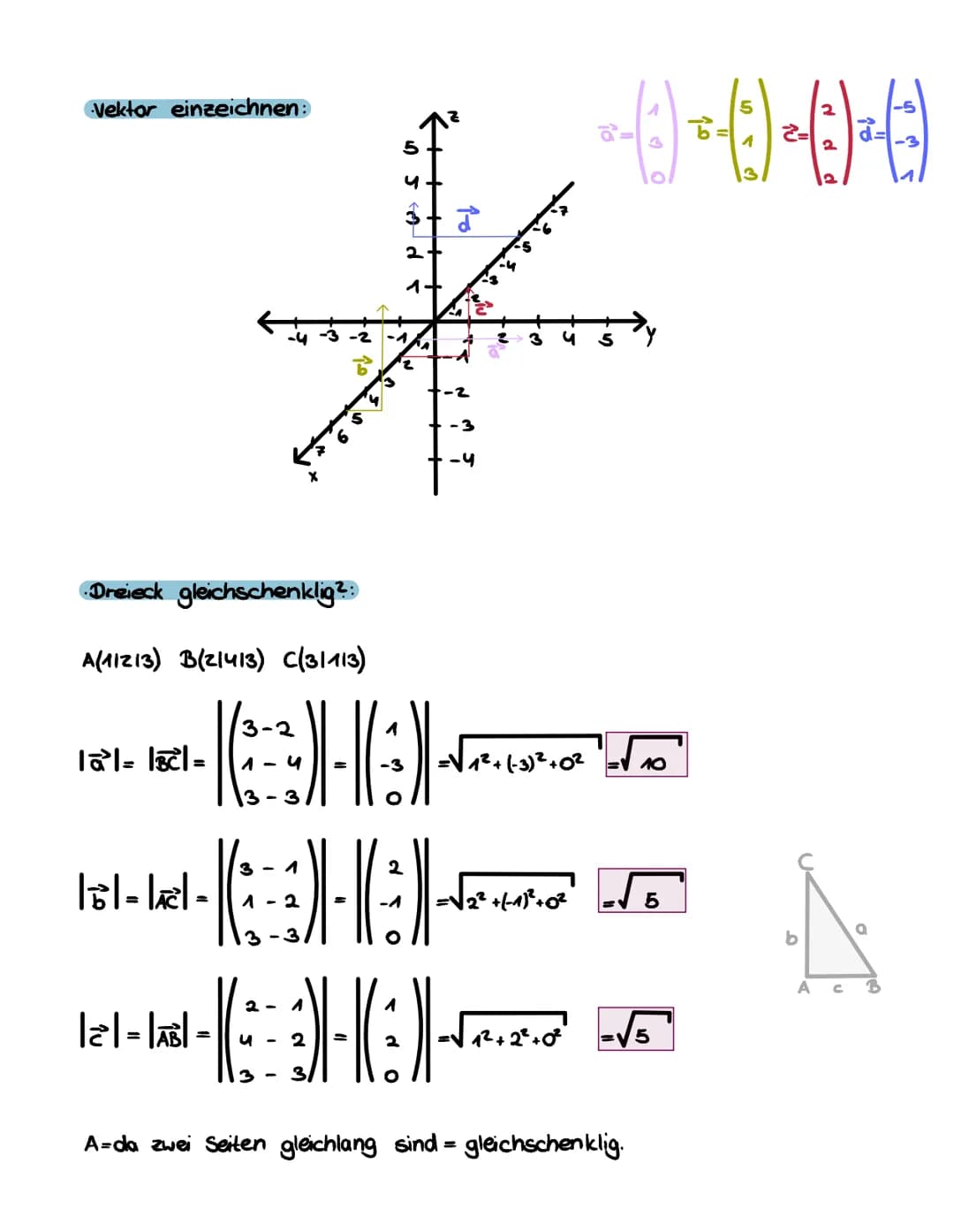

Vector Operations and Triangle Properties

This page explores vector operations and their application in determining geometric properties of triangles. It presents a specific example of using vectors to check if a triangle is isosceles.

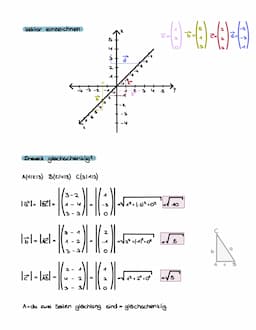

Example: Given points A(1,2,3), B(2,4,3), and C(3,1,3), the page demonstrates how to calculate vector lengths to determine if the triangle is isosceles.

The solution involves calculating the lengths of sides AB, BC, and AC using vector subtraction and the Pythagorean theorem.

Highlight: Vector operations provide a powerful tool for analyzing geometric properties of shapes in 3D space.

Planes and Coordinate Systems

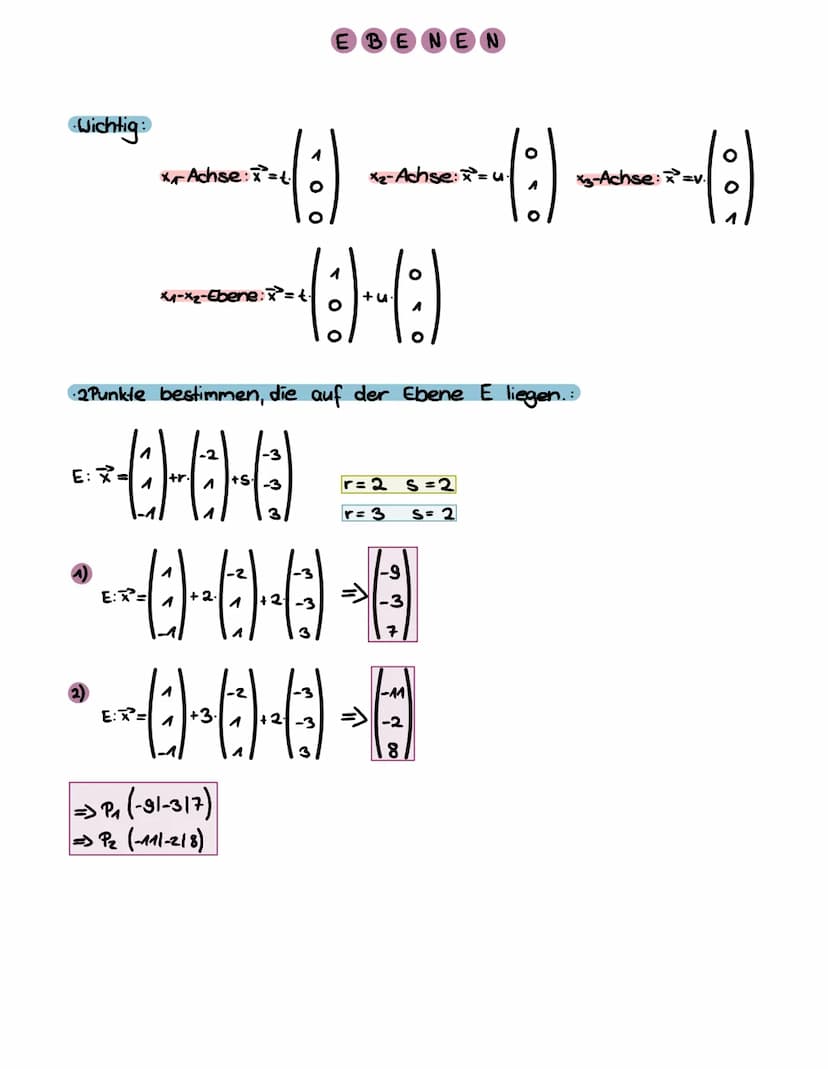

This page delves into the representation of planes in 3D space and their relationship to coordinate systems. It explains how to determine points that lie on a given plane.

Definition: A plane in 3D space can be represented by an equation in the form x = a + ru + sv, where a is a point on the plane, and u and v are direction vectors.

The page provides examples of how to:

1. Determine two points that lie on a given plane
2. Represent planes using different coordinate axes

Highlight: Understanding plane equations is essential for solving problems involving the intersection of planes and lines.

Line-Plane Relationships

This page focuses on determining whether a point lies on a given line and explores the relationships between lines and planes in 3D space.

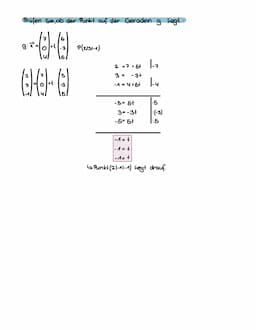

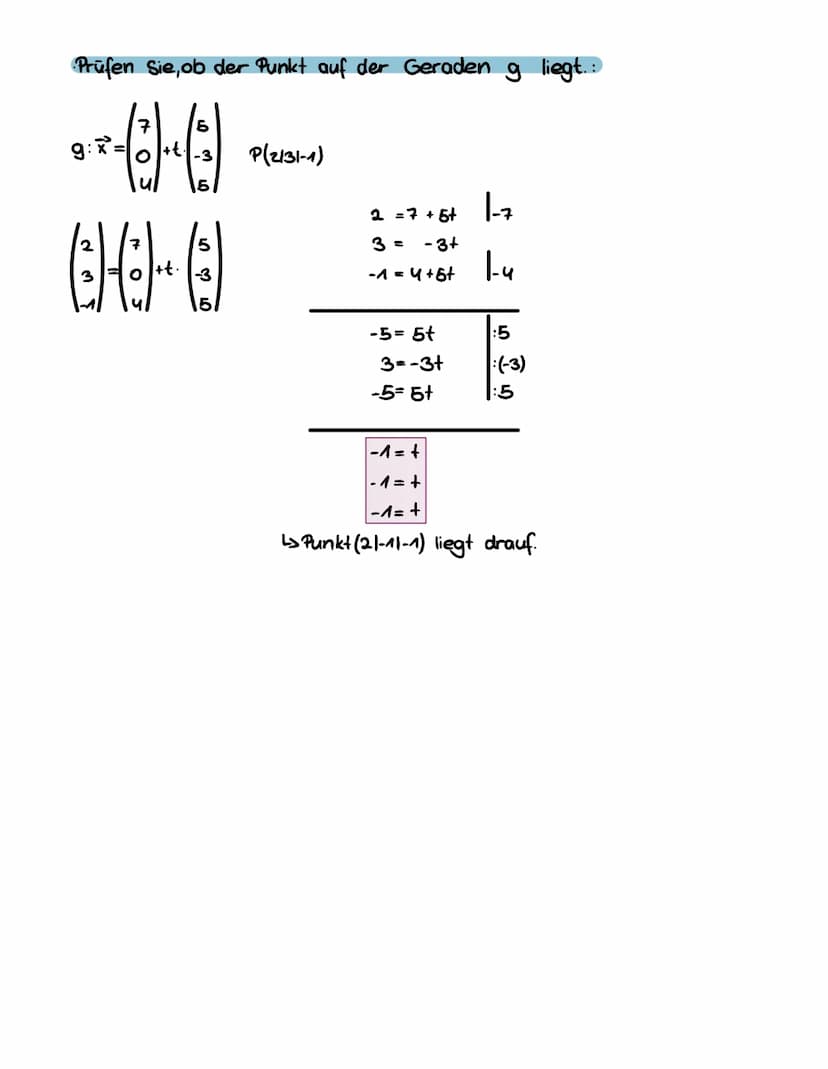

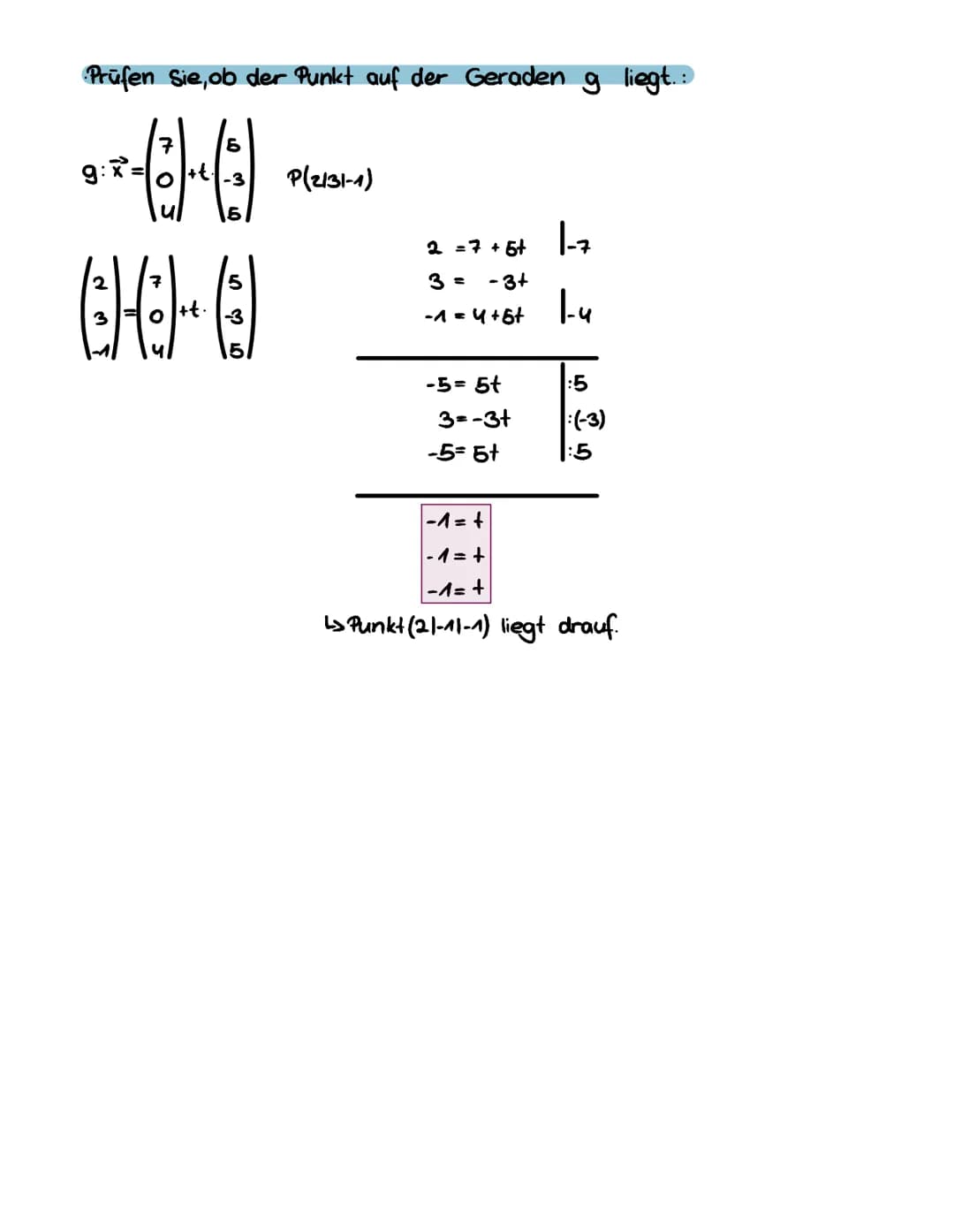

Example: The page demonstrates how to check if the point $2,3,-1$ lies on the line g: x = (7,5,4) + t$-3,-5,6$.

The solution involves substituting the point coordinates into the line equation and solving for the parameter t.

Vocabulary:

• Durchstoßpunkt (piercing point): The point where a line intersects a plane

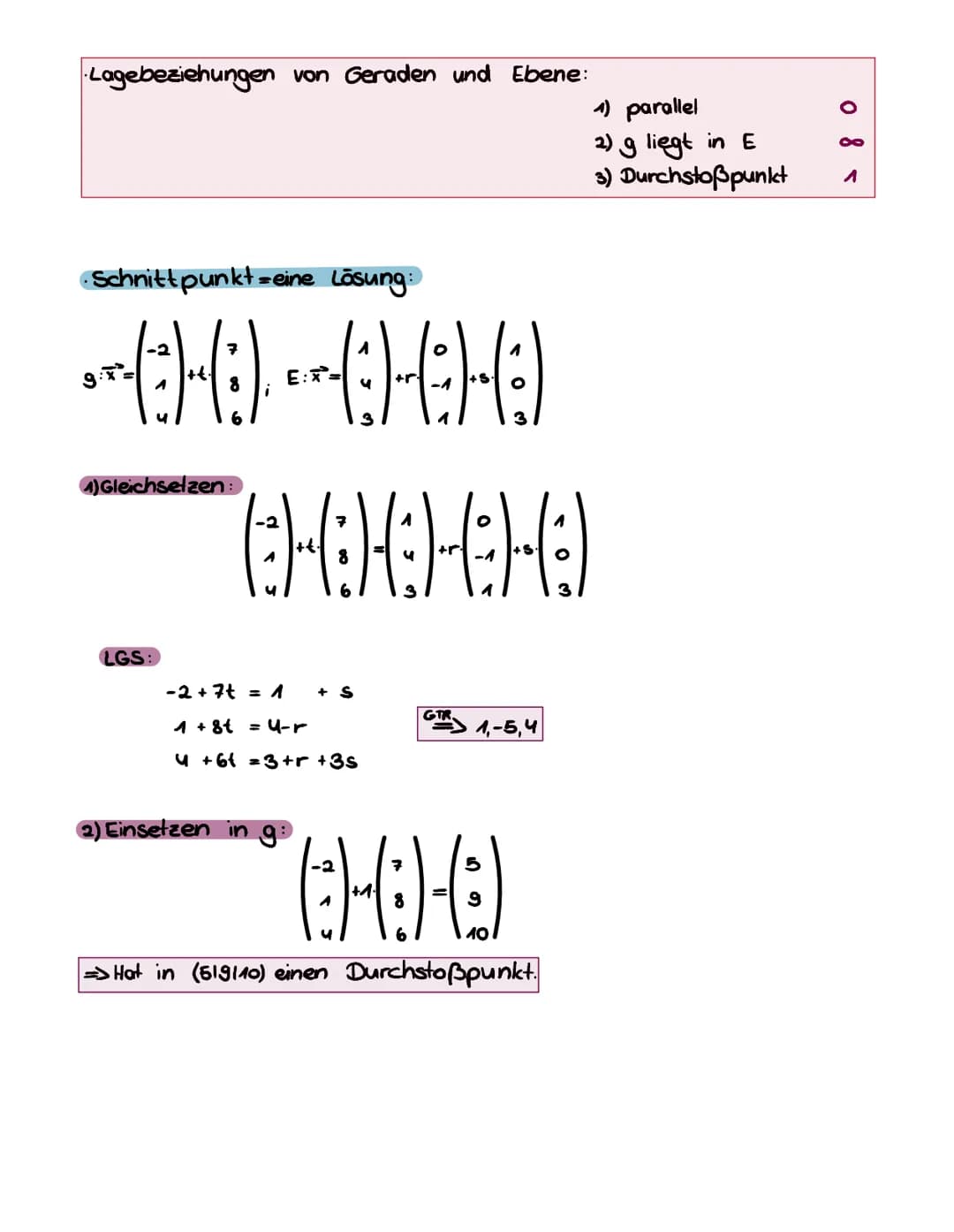

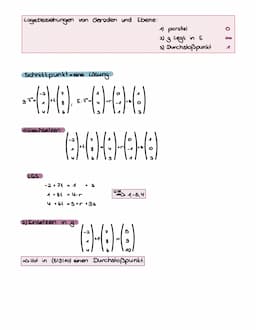

The page also introduces three possible relationships between a line and a plane:

1. The line is parallel to the plane
2. The line lies entirely within the plane
3. The line intersects the plane at a single point

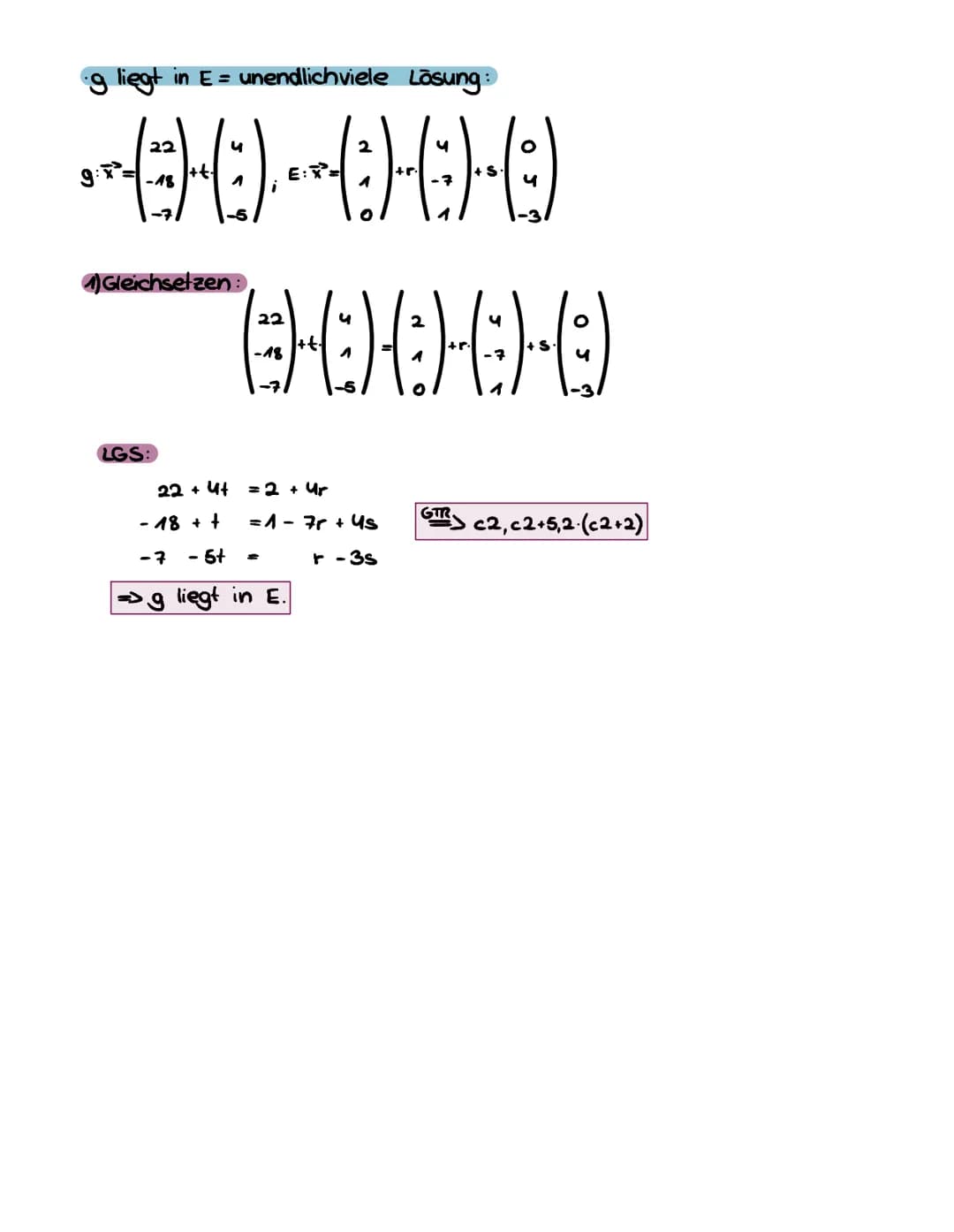

Line-Plane Intersection

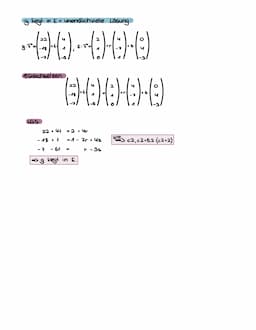

This page continues the discussion of line-plane relationships, focusing on the case where a line lies entirely within a plane. It demonstrates how to determine this relationship mathematically.

Example: The page shows how to set up and solve a system of equations to check if a given line lies within a plane.

The solution involves equating the line and plane equations and analyzing the resulting system of equations.

Highlight: When a line lies within a plane, the system of equations has infinitely many solutions.

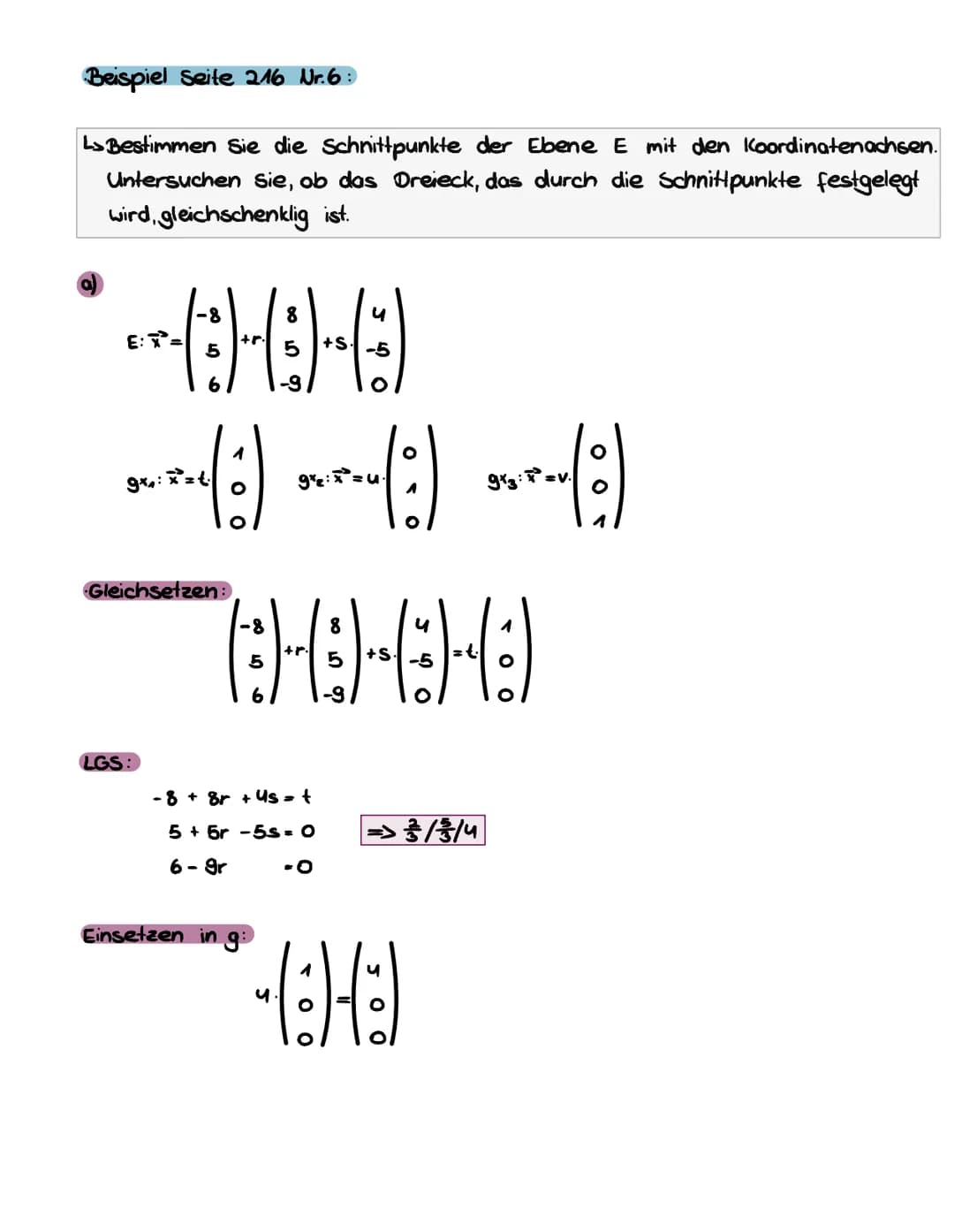

Coordinate Axis Intersections with a Plane

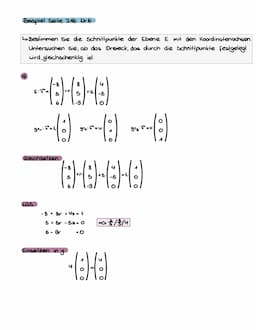

This page presents a problem involving finding the intersection points of a plane with the coordinate axes and determining if these points form an isosceles triangle.

Example: Given the plane E: x = $-8,5,6$ + r$8,5,-9$ + s$4,-5,1$, find its intersections with the x, y, and z axes.

The solution involves setting up and solving systems of equations for each axis intersection.

Highlight: This problem combines concepts of plane equations, line-plane intersections, and triangle properties.

Continuation of Coordinate Axis Intersections

This page continues the solution from the previous page, completing the calculations for finding the intersection points of the plane with the coordinate axes.

The intersection points are found to be:

• x-axis: (3,0,0)
• y-axis: (0,3,0)
• z-axis: (0,0,3)

Highlight: The symmetry of these intersection points (3 units along each axis) is noteworthy and simplifies further calculations.

Triangle Analysis

This page concludes the problem from the previous two pages by analyzing whether the triangle formed by the intersection points is isosceles.

The distances between the intersection points are calculated:

• |AB| = √34
• |BC| = √34
• |AC| = √18

Conclusion: The triangle is not isosceles, as two sides have equal length (√34), but the third side has a different length (√18).

Highlight: This example demonstrates how vector and plane concepts can be applied to solve complex geometric problems.

Line Relationships in 3D Space

This page provides an overview of the possible relationships between lines in three-dimensional space. It introduces key concepts and terminology for understanding these relationships.

Vocabulary:

• Schnittpunkt (intersection point): Where two lines meet
• Windschief (skew): Lines that do not intersect and are not parallel

The page outlines four possible relationships between lines:

1. Intersecting at a point
2. Identical (completely overlapping)
3. Parallel
4. Skew

Highlight: Understanding these relationships is crucial for solving problems involving multiple lines in 3D space.

Determining Line Intersections

This page demonstrates how to determine if two lines intersect and find their point of intersection if they do. It provides a step-by-step example of the process.

Example: Given two lines, g₁ and g₂, the page shows how to set up and solve a system of equations to find their intersection point.

The solution involves:

1. Equating the parametric equations of the two lines
2. Solving the resulting system of equations
3. Checking if the solution represents a valid intersection point

Highlight: The intersection point is found to be (3,1,6), demonstrating a successful application of the method.
