Page 2: Lines in Three-Dimensional Space

This page explains how to represent and draw lines in three-dimensional space using parametric equations and vector concepts.

Definition: Every line can be described by the equation x = p + ru, where p is the support vector and u is the direction vector.

Example: A point test can be performed by substituting coordinates into the line equation and solving for the parameter r.

Highlight: The process of drawing a line involves plotting the support vector from the origin and then adding the direction vector.

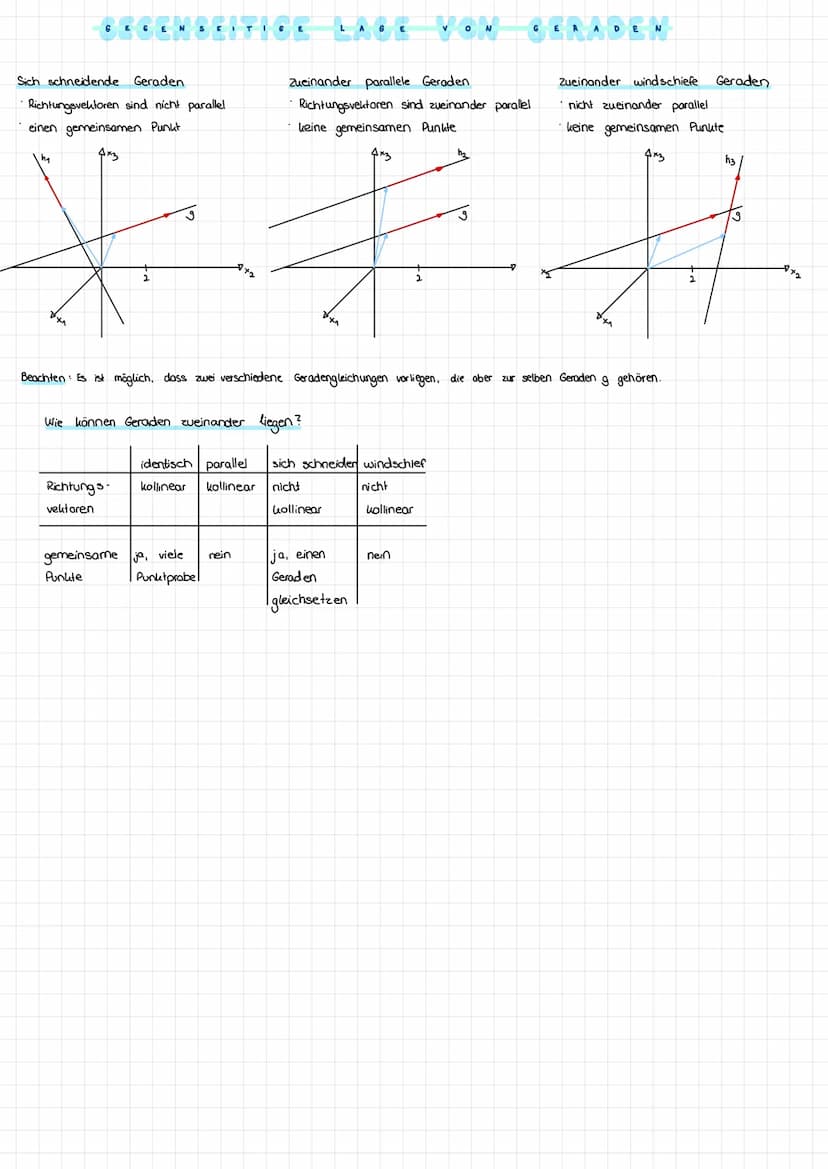

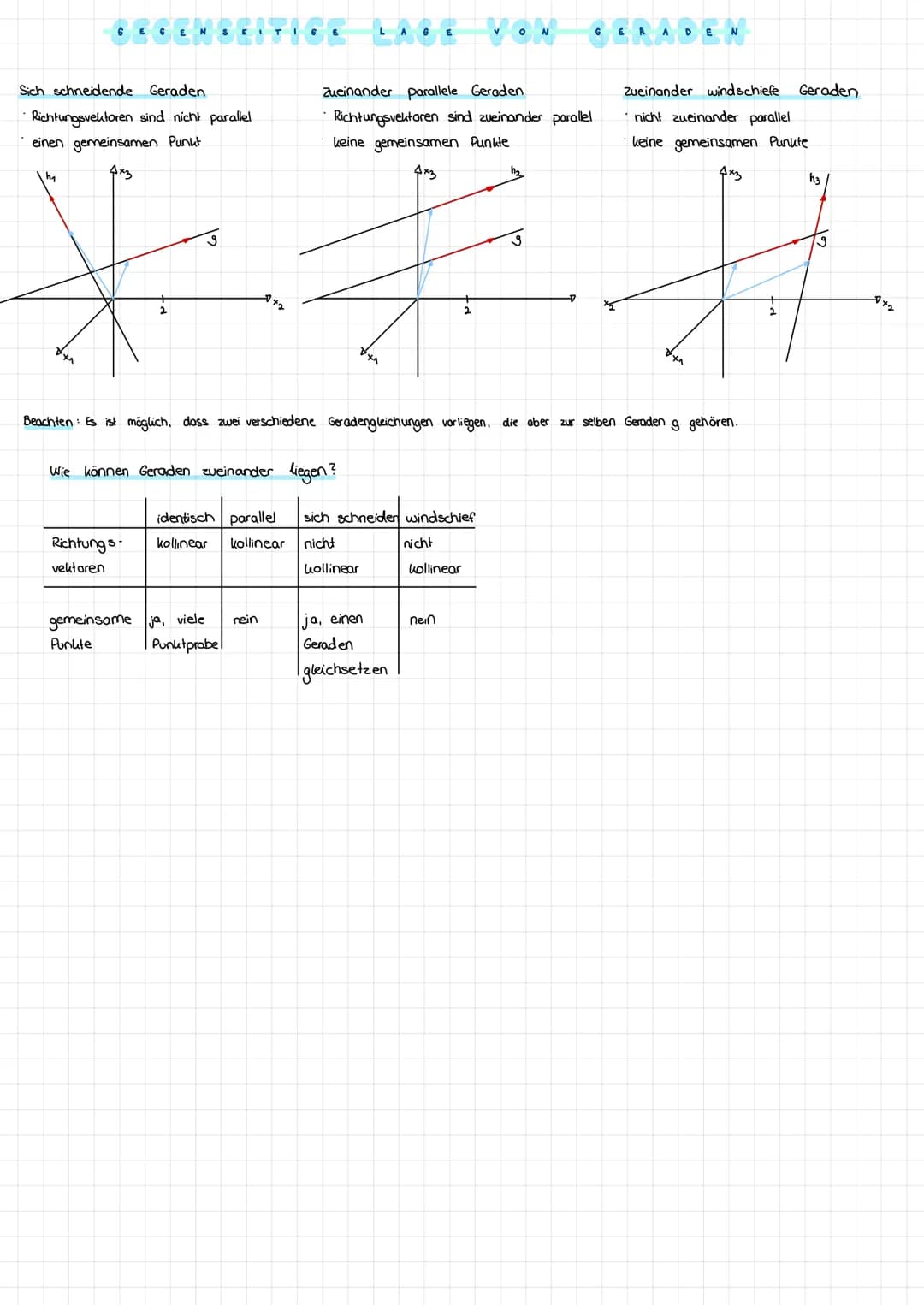

Page 3: Line Relationships

This page covers the different ways lines can be positioned relative to each other in three-dimensional space.

Definition: Lines can be parallel, intersecting, or skew (windschief) to each other.

Highlight: Parallel lines have collinear direction vectors but no common points.

Vocabulary: "Windschief" refers to lines that are neither parallel nor intersecting in three-dimensional space.

Page 4: Orthogonality and Angle Calculations

This page discusses orthogonality between vectors and lines, including angle calculations using the dot product.

Definition: The dot product of vectors a and b is calculated as a·b = a₁b₁ + a₂b₂ + a₃b₃.

Example: For vectors AB and AC, the angle between them can be calculated using cos(α) = (AB·AC)/(|AB|·|AC|).

Highlight: Two intersecting lines are orthogonal if and only if their direction vectors are orthogonal.

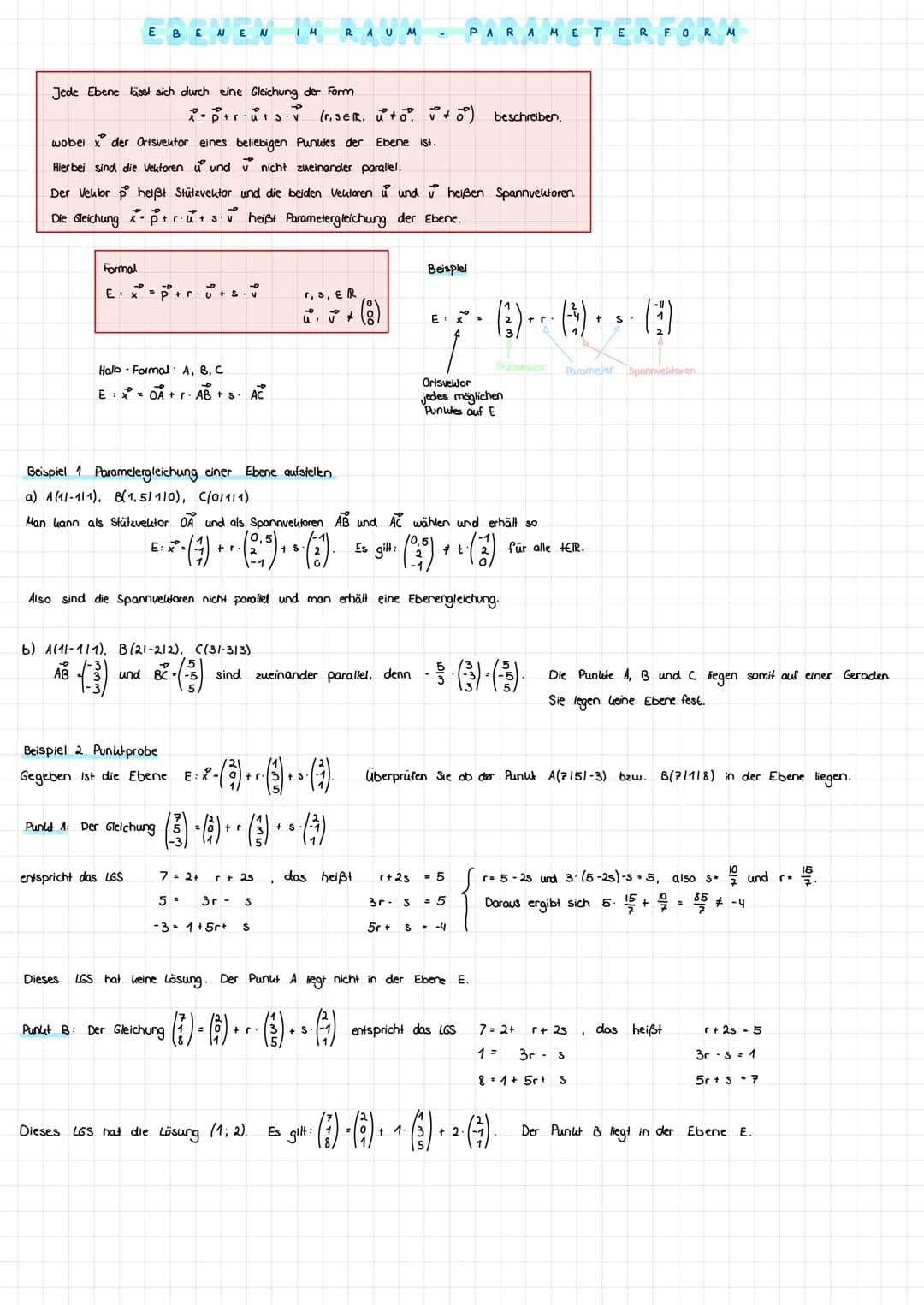

Page 5: Planes in Three-Dimensional Space

This page introduces the representation of planes in three-dimensional space using vector equations.

Definition: A plane can be described by the equation x = p + ru + sv, where x is the position vector of any point on the plane.

Highlight: The equation uses two direction vectors and one support vector to fully define the plane's position and orientation.

Page 6: [No content provided for page 6]

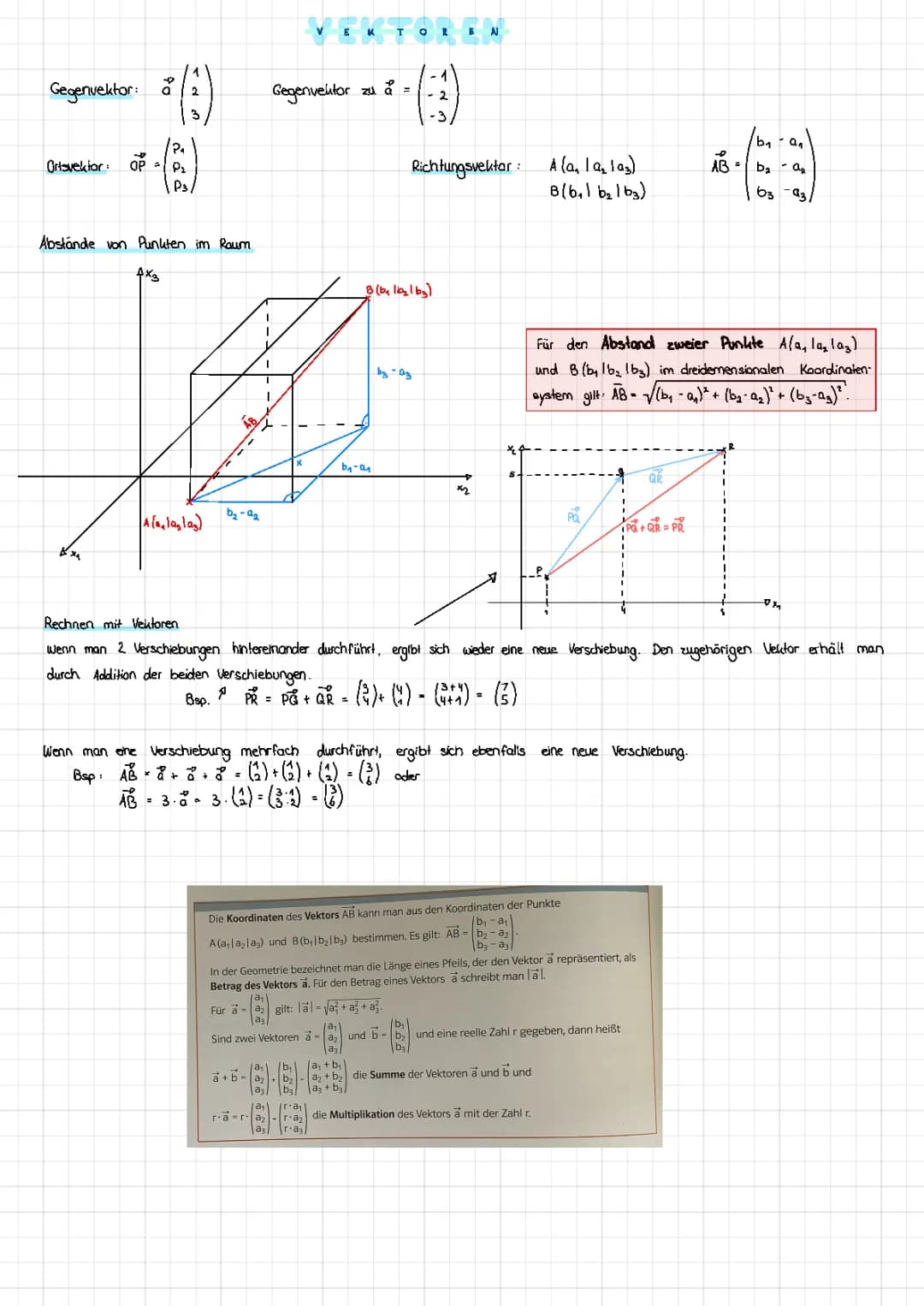

Page 1: Vector Basics and Calculations

This page introduces fundamental vector concepts and calculations in three-dimensional space. The content focuses on displacement vectors, position vectors, and basic vector operations.

Definition: A vector's magnitude |a| is calculated using the formula √$a₁² + a₂² + a₃²$ for a vector a = (a₁, a₂, a₃).

Example: For vector addition AB = (2,1,1) + (1,0,0) = (3,1,1), showing how consecutive displacements combine.

Highlight: Vector coordinates can be determined from the coordinates of two points A(a₁,a₂,a₃) and B(b₁,b₂,b₃) using the formula AB = $b₁-a₁, b₂-a₂, b₃-a₃$.

Vocabulary: The term "Betrag" (magnitude) refers to the length of a vector and is denoted by |a| for a vector a.
