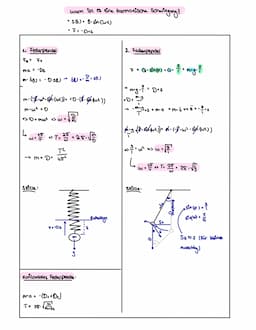

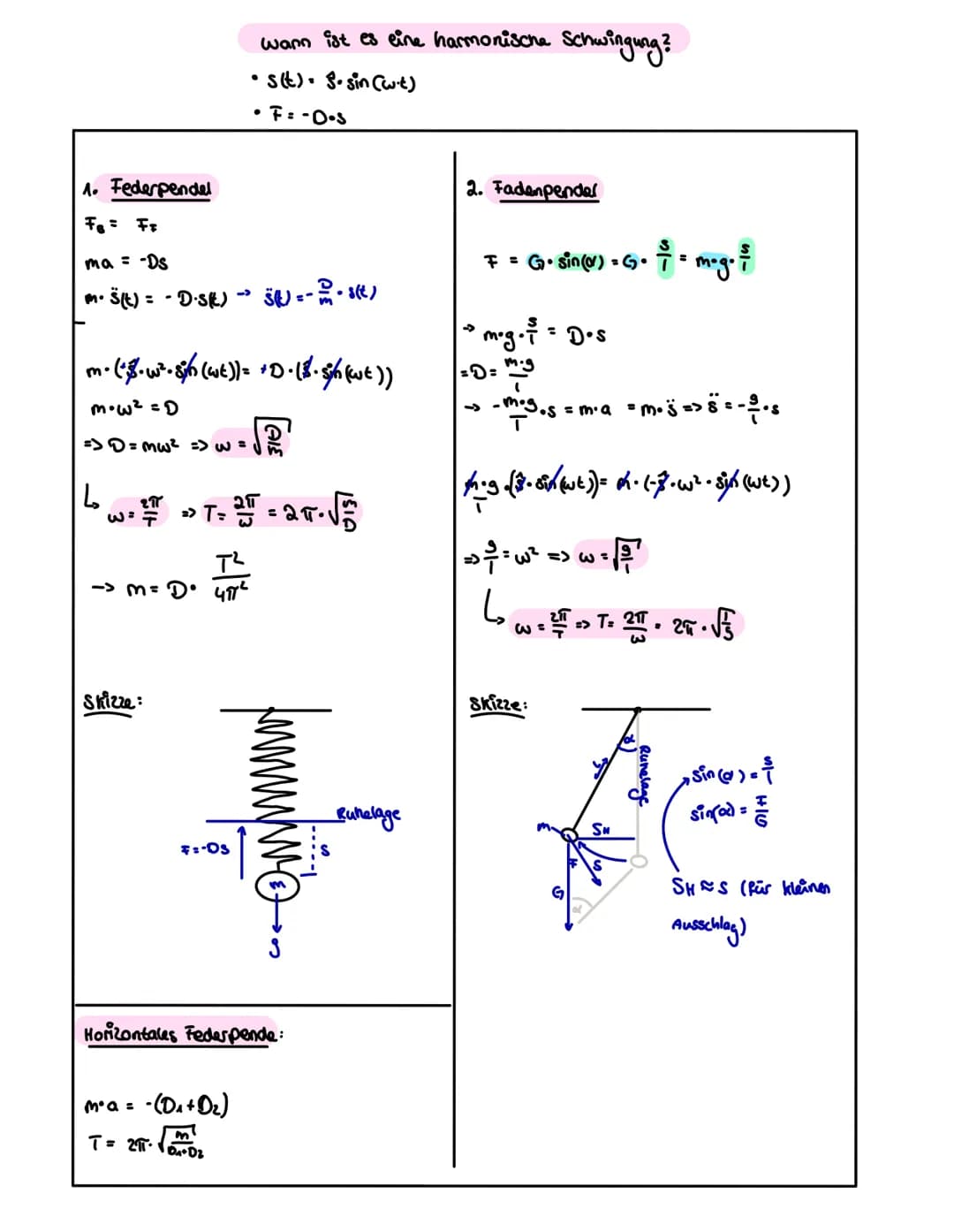

Spring Pendulum and Simple Pendulum

This page discusses two important examples of harmonic oscillation: the spring pendulum and the simple pendulum.

For a spring pendulum, the equation of motion is derived from Newton's second law and Hooke's law:

ma = -Ds m • s''$t$ = -D • s$t$ m • ω² = D

From this, we can derive the period of oscillation: T = 2π • √(m/D)

Example: For a horizontal spring pendulum, the period is given by T = 2π • √(m/D), where m is the mass and D is the spring constant.

For a simple pendulum, the equation of motion is derived from the gravitational force component tangent to the arc of motion:

m • g • (s/L) = D • s m • g / L = D

This leads to the period formula for small oscillations: T = 2π • √(L/g)

Highlight: The period of a simple pendulum for small oscillations is independent of the mass and depends only on the length of the pendulum and the acceleration due to gravity.

Both these systems demonstrate harmonic oscillation examples and can be used to solve harmonic oscillation problems involving frequency and amplitude.

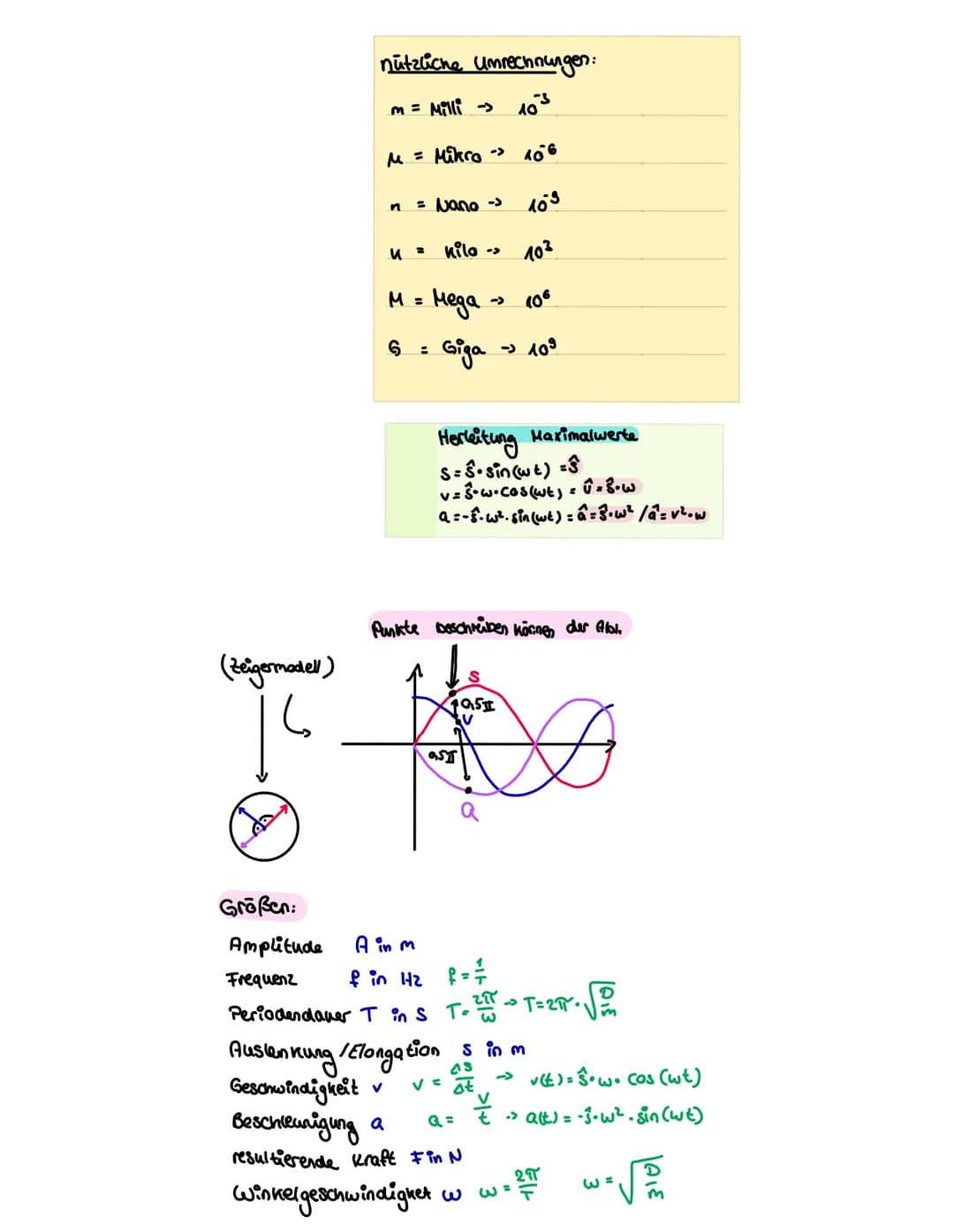

Harmonic Oscillation Parameters and Zeigermodell

This page introduces important parameters of harmonic oscillation and the Zeigermodell (pointer model) for visualization.

Key parameters include:

• Amplitude (A) in meters
• Frequency $f$ in Hertz (Hz)
• Period (T) in seconds
• Angular frequency (ω) in radians per second

Vocabulary: The Zeigermodell is a visual representation of harmonic oscillation using a rotating pointer.

Useful conversions for units are provided, such as milli (10⁻³), micro (10⁻⁶), nano (10⁻⁹), kilo (10³), mega (10⁶), and giga (10⁹).

Maximum values for displacement, velocity, and acceleration are derived:

• s = Ŝ (maximum displacement)
• v = Ŝ • ω (maximum velocity)
• a = Ŝ • ω² (maximum acceleration)

Highlight: The relationship between maximum acceleration and velocity is given by â = v² • ω.

The Zeigermodell illustrates how the projection of circular motion corresponds to harmonic oscillation, providing a visual aid for understanding phase relationships and maximum values.

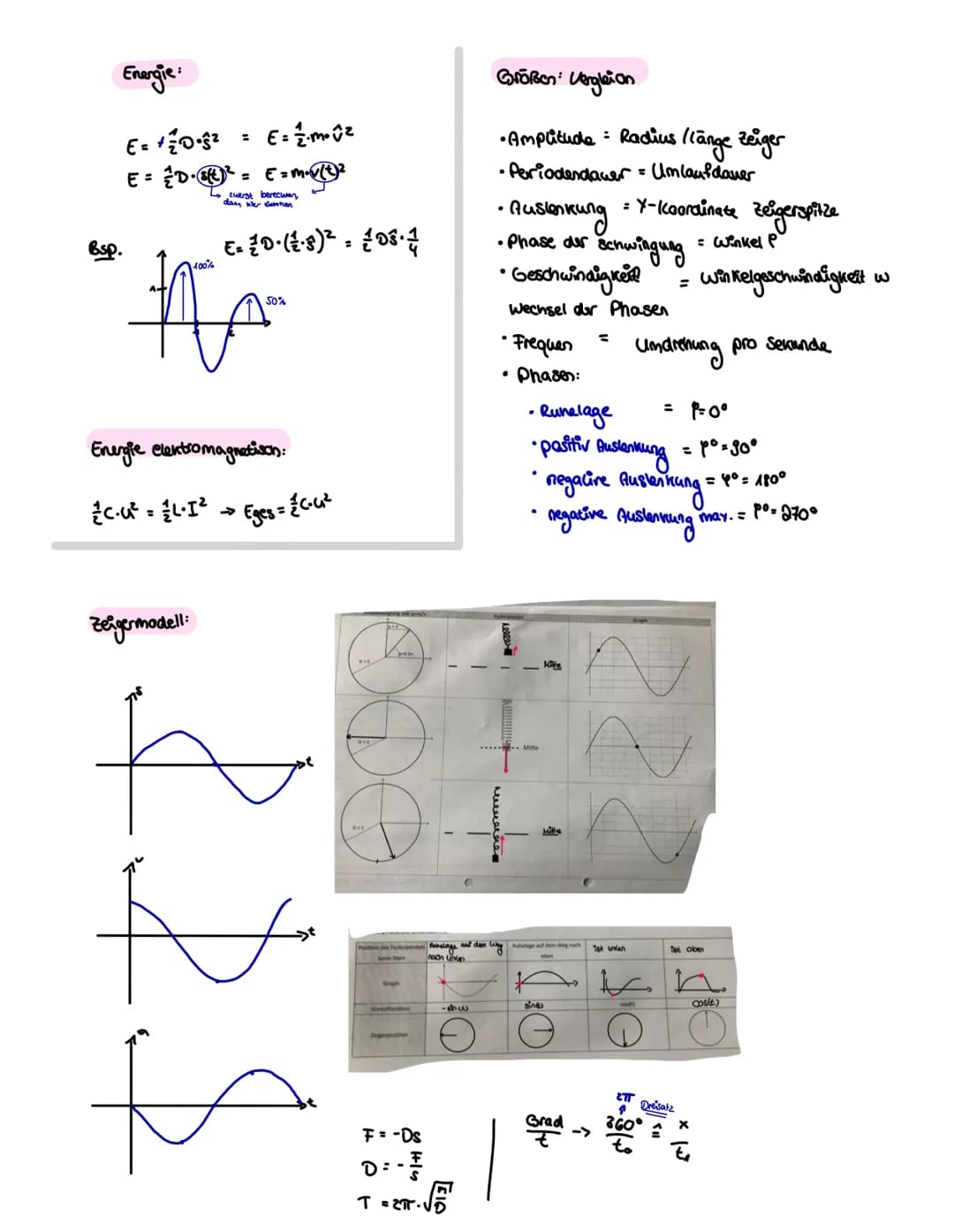

Energy in Harmonic Oscillation and Zeigermodell Applications

This page focuses on the energy aspects of harmonic oscillation and further applications of the Zeigermodell.

The total energy of a harmonic oscillator is constant and can be expressed as: E = ½ • D • Ŝ² = ½ • m • v²

Example: In a spring system, the energy can be calculated using E = ½ • D • Ŝ², where D is the spring constant and Ŝ is the amplitude.

For electromagnetic oscillations, the energy is given by: E = ½ • C • U² = ½ • L • I², where C is capacitance, U is voltage, L is inductance, and I is current.

The Zeigermodell is used to visualize various aspects of harmonic oscillation:

• Amplitude corresponds to the length of the pointer
• Period is represented by one complete rotation
• Displacement is shown by the x-coordinate of the pointer tip
• Phase is indicated by the angle of the pointer

Highlight: The Zeigermodell provides a visual representation of how displacement, velocity, and acceleration change throughout the oscillation cycle.

Different phases of oscillation are associated with specific angles:

• 0° or 360°: equilibrium position
• 90°: maximum positive displacement
• 180°: equilibrium position (opposite direction)
• 270°: maximum negative displacement

This model helps in understanding the relationships between different oscillation parameters and their changes over time.

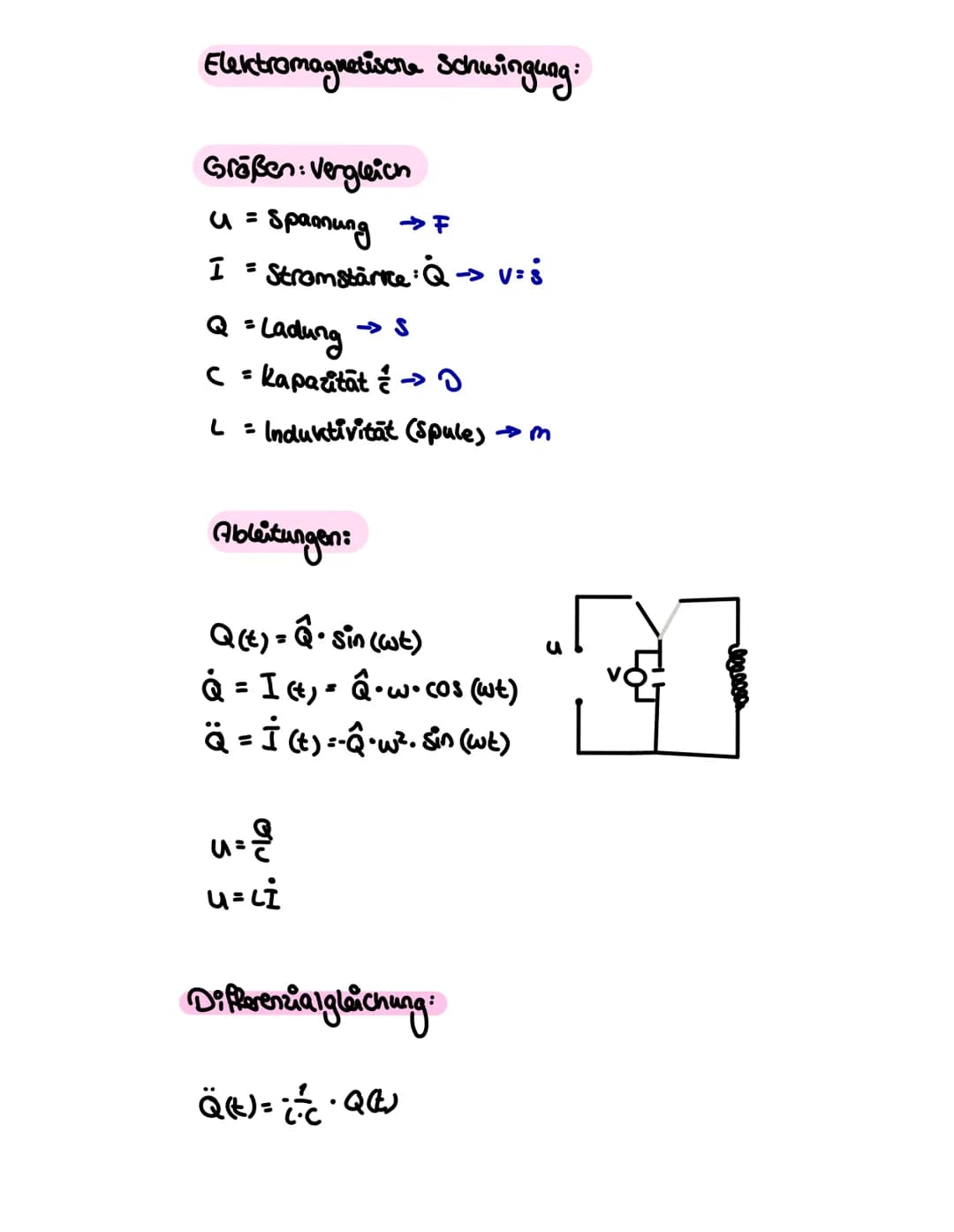

Electromagnetic Oscillations

This page discusses electromagnetic oscillations, drawing parallels between mechanical and electrical systems.

Key analogies between mechanical and electrical oscillations:

• Voltage (U) corresponds to force (F)
• Current (I) corresponds to velocity $v$
• Charge (Q) corresponds to displacement $s$
• Capacitance (C) corresponds to the inverse of spring constant $1/D$
• Inductance (L) corresponds to mass $m$

Vocabulary: In electromagnetic oscillations, inductance (L) plays a role analogous to mass in mechanical systems, while capacitance (C) is analogous to the inverse of spring constant.

The equations for charge, current, and voltage in an electromagnetic oscillation are similar to those for displacement, velocity, and acceleration in mechanical oscillations:

Q$t$ = Q̂ • sin(ωt) I$t$ = Q̂ • ω • cos(ωt) U$t$ = -Q̂ • ω² • sin(ωt) / C

Example: In an electromagnetic oscillation, the charge varies sinusoidally as Q$t$ = Q̂ • sin(ωt), similar to the displacement in a mechanical oscillation.

The differential equation for an electromagnetic oscillation is: Q''$t$ + $1/LC$ • Q$t$ = 0

This equation is analogous to the differential equation for mechanical harmonic oscillation, highlighting the similarities between the two systems.

Highlight: The study of electromagnetic oscillations reveals striking parallels with mechanical oscillations, allowing for similar mathematical treatments and insights.

Understanding these analogies helps in analyzing and solving problems related to electromagnetic oscillation examples and electromagnetic oscillation definitions in various applications.

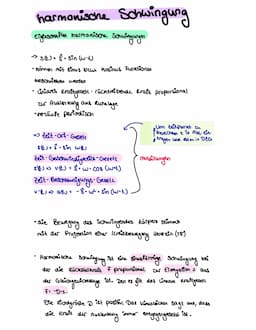

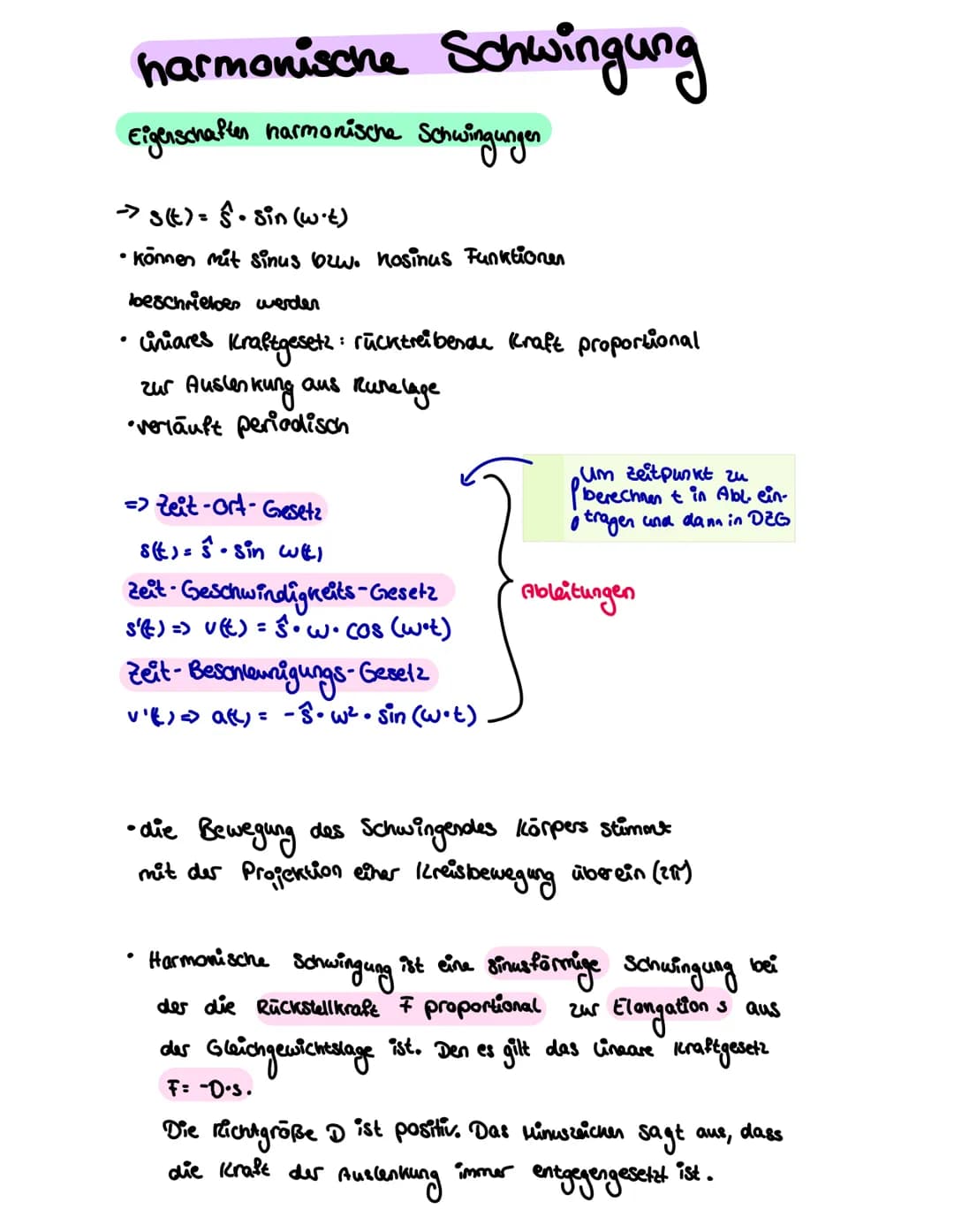

Harmonic Oscillation Fundamentals

Harmonic oscillation is defined by a sinusoidal oscillation where the restoring force is proportional to the displacement from equilibrium. This relationship is described by the linear force law: F = -D•s, where D is the positive spring constant and the negative sign indicates that the force always opposes the displacement.

Definition: A harmonic oscillation is a sinusoidal oscillation where the restoring force is proportional to the displacement from equilibrium, following the linear force law F = -D•s.

The time-displacement law for harmonic oscillation is given by s$t$ = Ŝ • sin(ωt), where Ŝ is the amplitude and ω is the angular frequency. This equation forms the basis for deriving the velocity and acceleration equations through differentiation.

Highlight: The time-displacement law s$t$ = Ŝ • sin(ωt) is fundamental to understanding harmonic oscillation and deriving related equations.

To calculate specific points in time, one can use these equations by inserting the time value and then applying it to the differential equation of motion.

Example: To find the velocity at a specific time t, use v$t$ = Ŝ • ω • cos(ωt) and input the given time value.
